55 Ackland Street

• High Physical Support SDA
• Two Participant Home + OOA
• Enhanced Accessibility House

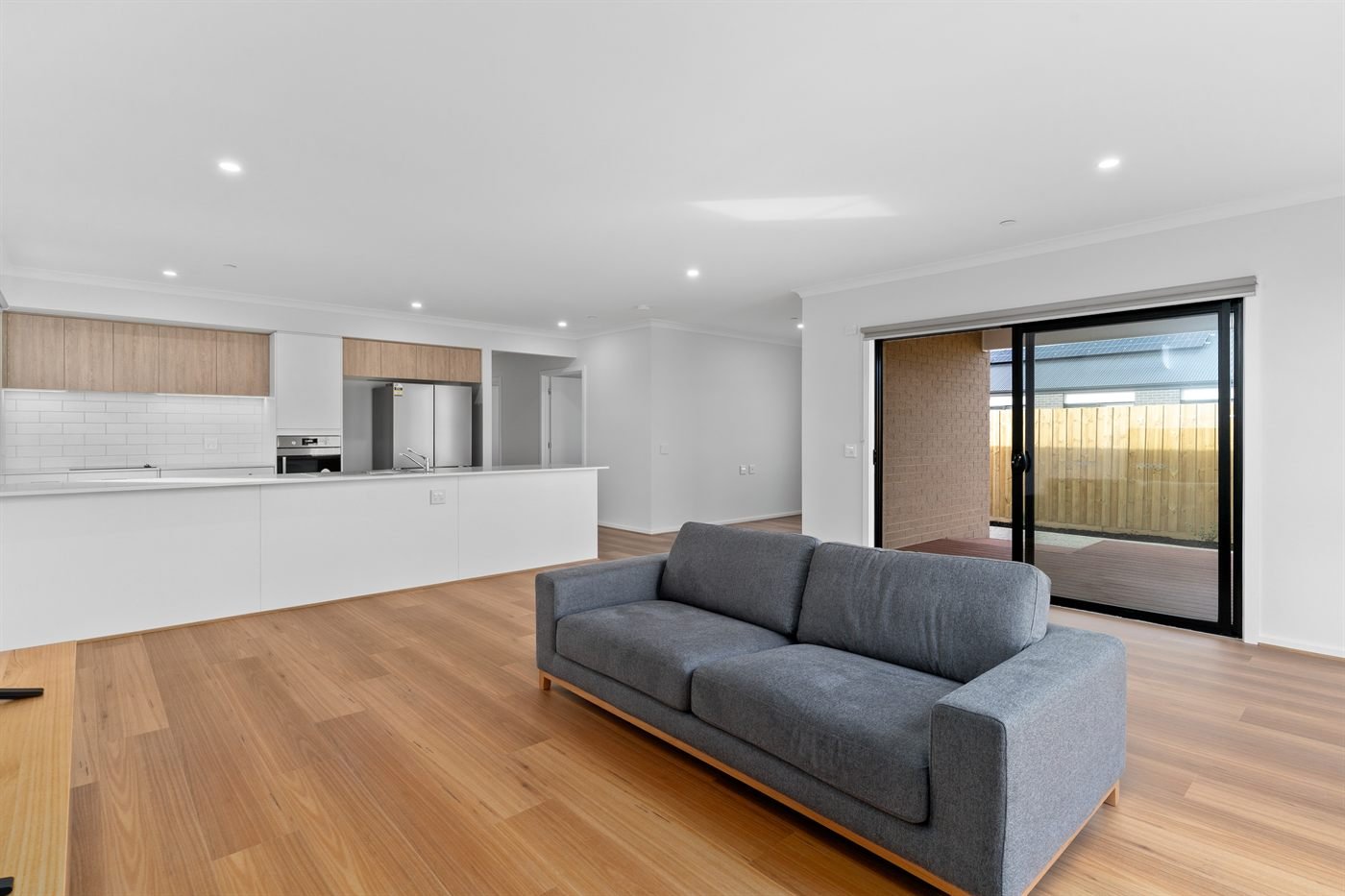

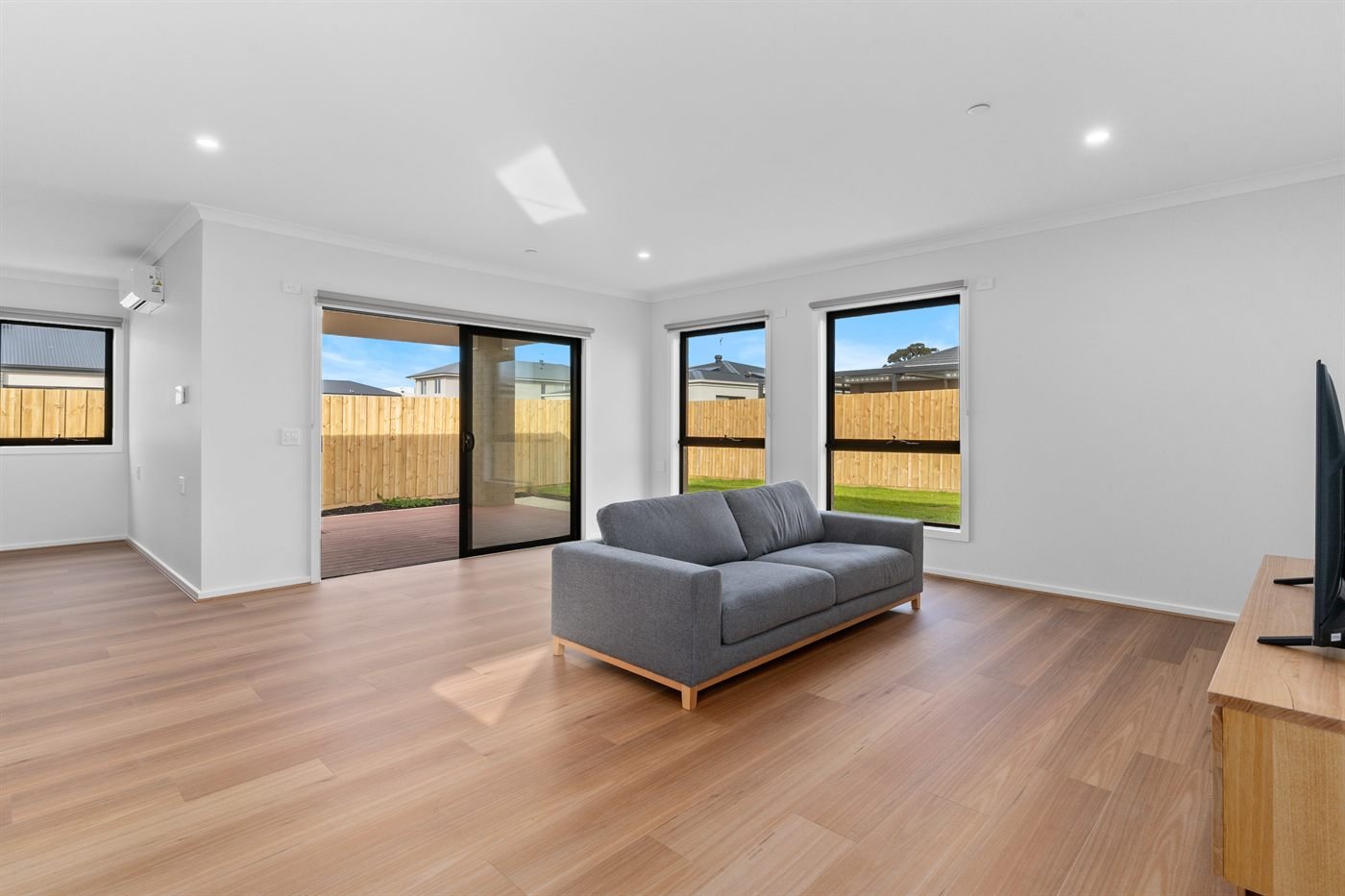

The Heart of the Home

• Open, Accessible and Easy to Move Through
• Daily life happens in the central living and dining area.
• The home has been designed so that the living area, kitchen, bedrooms, bathroom, and laundry are all accessible on a single level, which is a core requirement of the High Physical Support design standard.
• All internal corridors provide a minimum clear width of 1200 mm from skirting to skirting, and doorways used by participants provide a minimum clear opening width of 950 mm. This means wheelchairs, mobility equipment, and support workers can move through the home comfortably and safely.
• Lighting, switches, and powerpoints have been positioned in accessible locations throughout the home.
• Light switches are installed between 900 mm and 1100 mm above floor level and aligned consistently with door handles at each room entrance.
• GPOs are installed at compliant heights to make everyday tasks easier and more independent.
• The single-level layout means there are no internal steps and no barriers between the spaces that participants use most often.

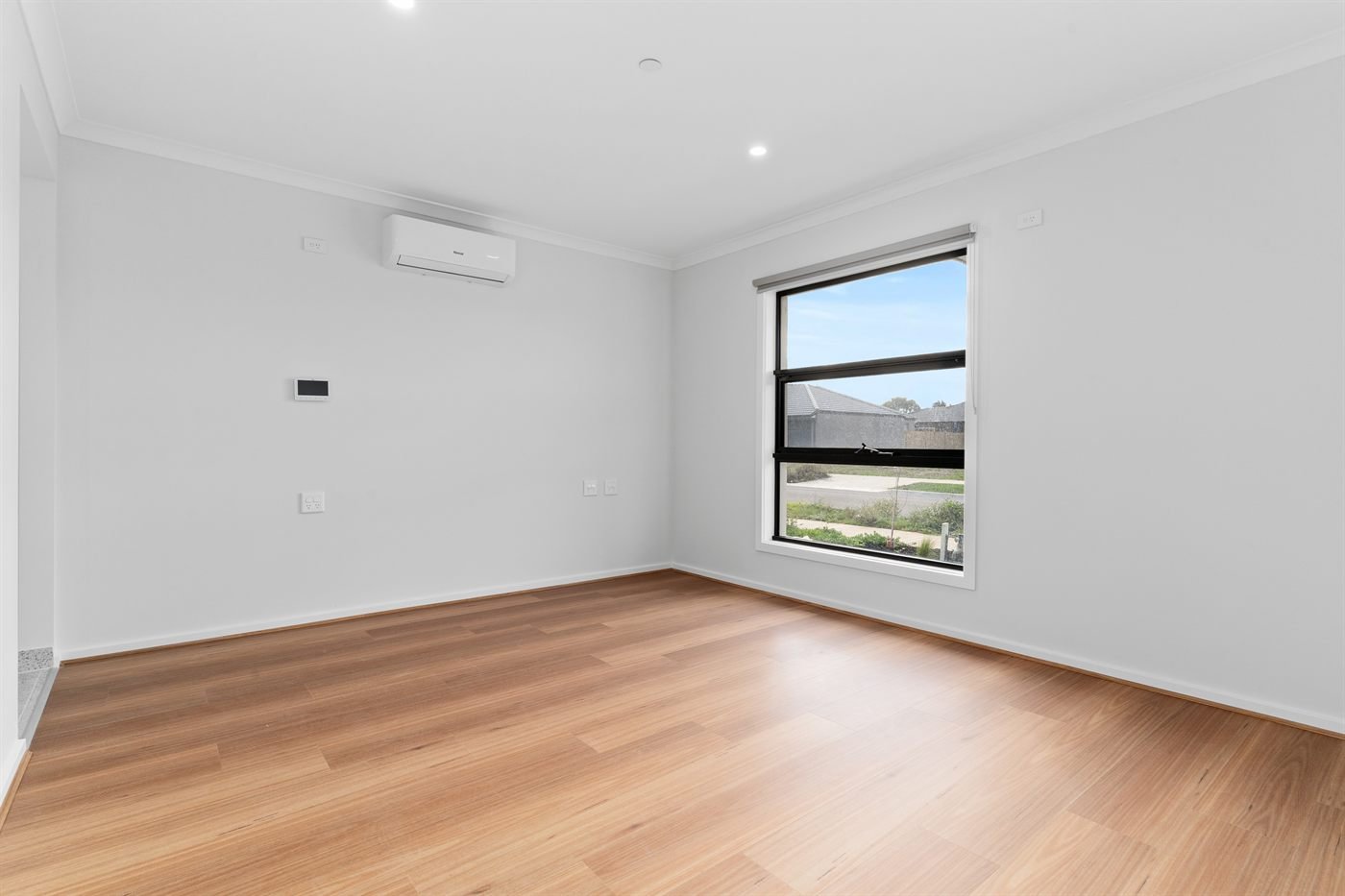

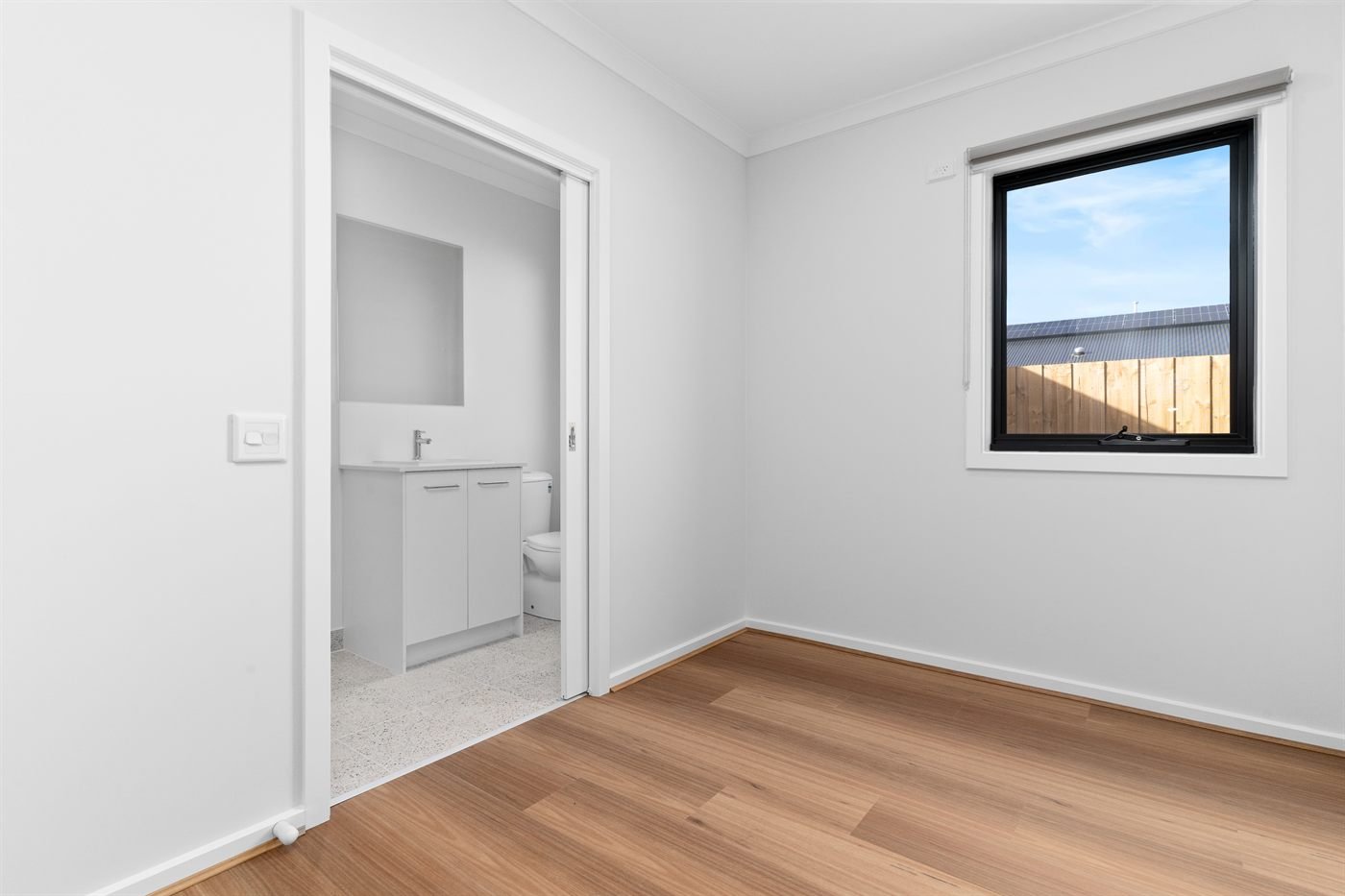

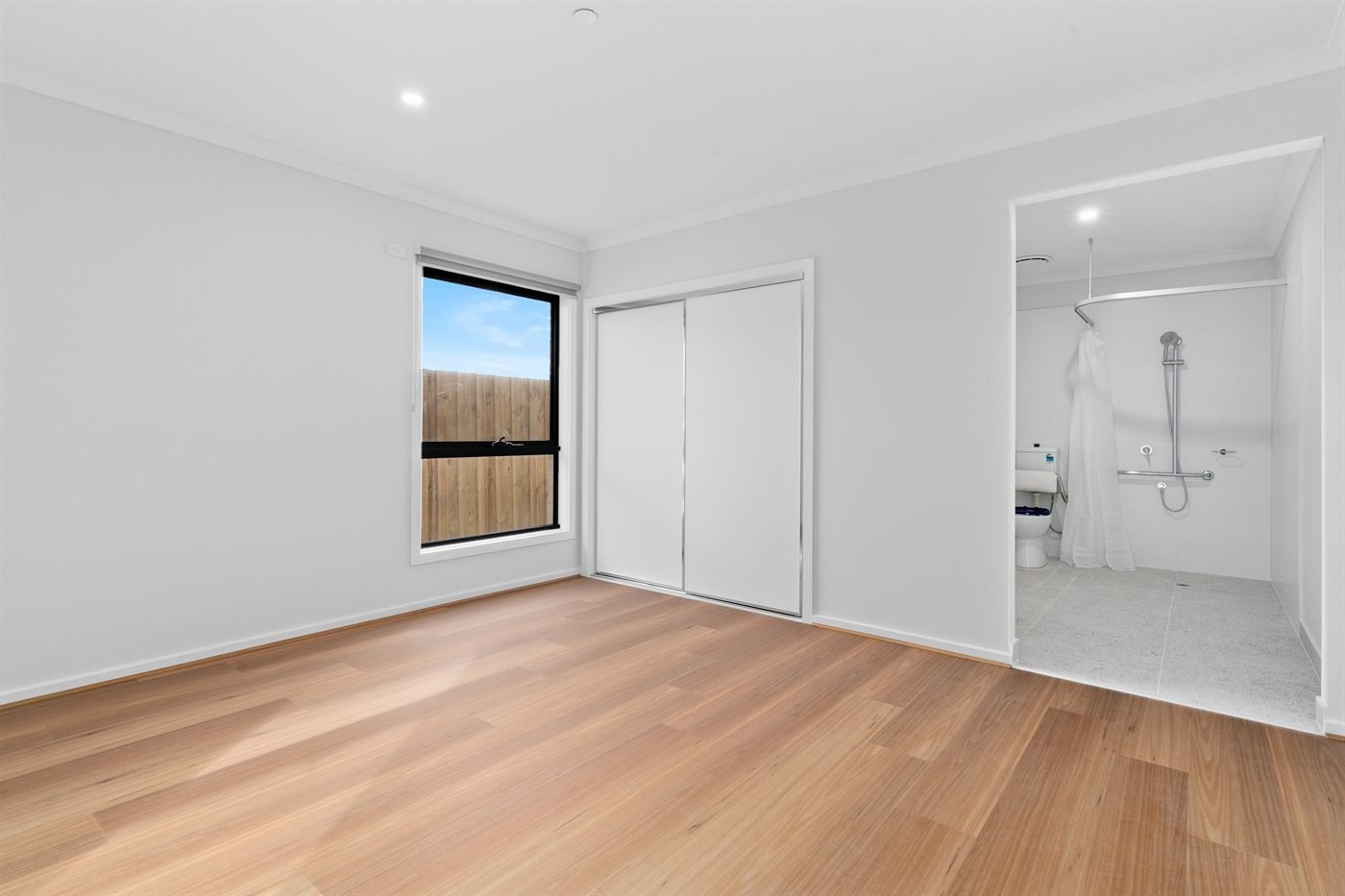

Private, Comfortable and Built for Long-Term Needs

• The participant bedrooms have been designed to exceed the minimum High Physical Support requirements, allowing proper circulation space around a Queen-sized bed. This provides enough room for wheelchair access, mobility equipment, and safe support delivery when required.
• Each bedroom has been structurally designed to allow for future ceiling hoist installation.
• Certification included with the assessment confirms that the bedrooms have been provided with the power and in-built structure capable of supporting a minimum 250 kg ceiling hoist system. This means the home is ready to adapt as support needs change in the future.
• Windows are positioned and fitted to be accessible from a seated or standing position, and power and control cabling has been provided to allow future automation of blinds if required.
• Lockable windows and accessible air-conditioning controls are also included to support safety and independence.
• These bedrooms are real private spaces, with room for safe, practical support when needed.

Accessible, Safe and Designed for Support

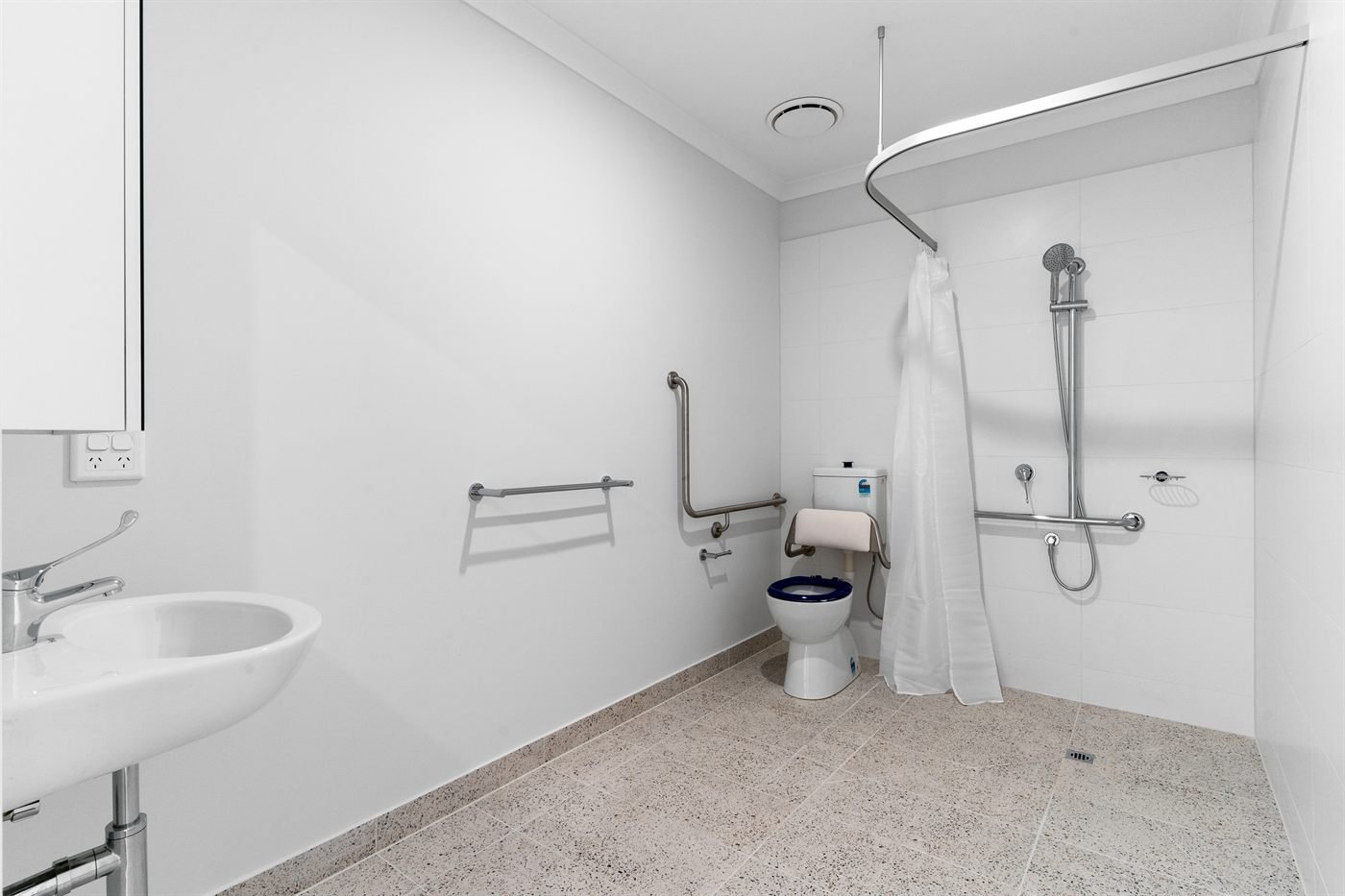

• The bathroom has been built in full compliance with the High Physical Support design requirements and AS1428.1 accessibility standards.
• The layout includes a WC pan, shower, and hand wash basin designed to allow proper circulation space for wheelchair users and support workers.
• The shower area meets the minimum accessible size requirements and includes the correct positioning for grabrails and a height-adjustable shower head.
• The WC pan and basin are positioned to allow safe transfers and ease of use.
• Wall reinforcement has been installed throughout the sanitary areas from floor level to a height of 2100 mm. This means grabrails and assistive equipment can be installed wherever they are needed, both now and in the future.
• Slip-resistant flooring has been installed throughout the bathroom to improve safety and reduce the risk of falls.

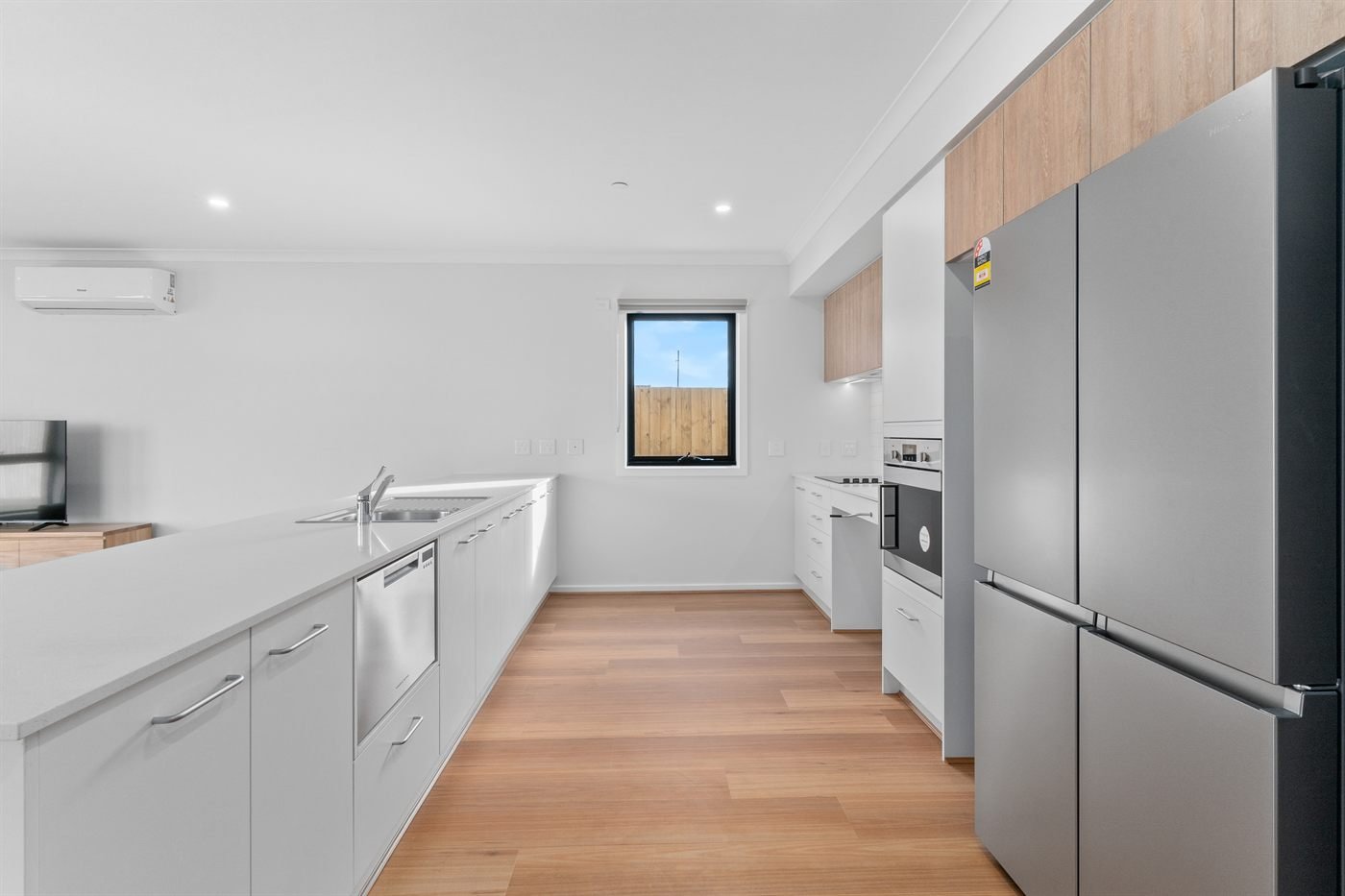

Designed for Everyday Independence

• The kitchen has been built to meet the High Physical Support design standard, with clear circulation space in front of all benches and appliances to allow wheelchair users to approach and use the space safely.

The layout includes

A fixed cooktop, in-built oven, accessible sink, dishwasher

• Accessible tapware, compliant appliance positioning, and wheelchair-friendly clearances all support independent use wherever possible.
• A height-adjustable benchtop has been provided, allowing participants to use the kitchen comfortably whether seated or standing.
• Cabinet handles, powerpoints, and task lighting have all been positioned to support easy day-to-day use.
• This is a kitchen that supports independence rather than limiting it.

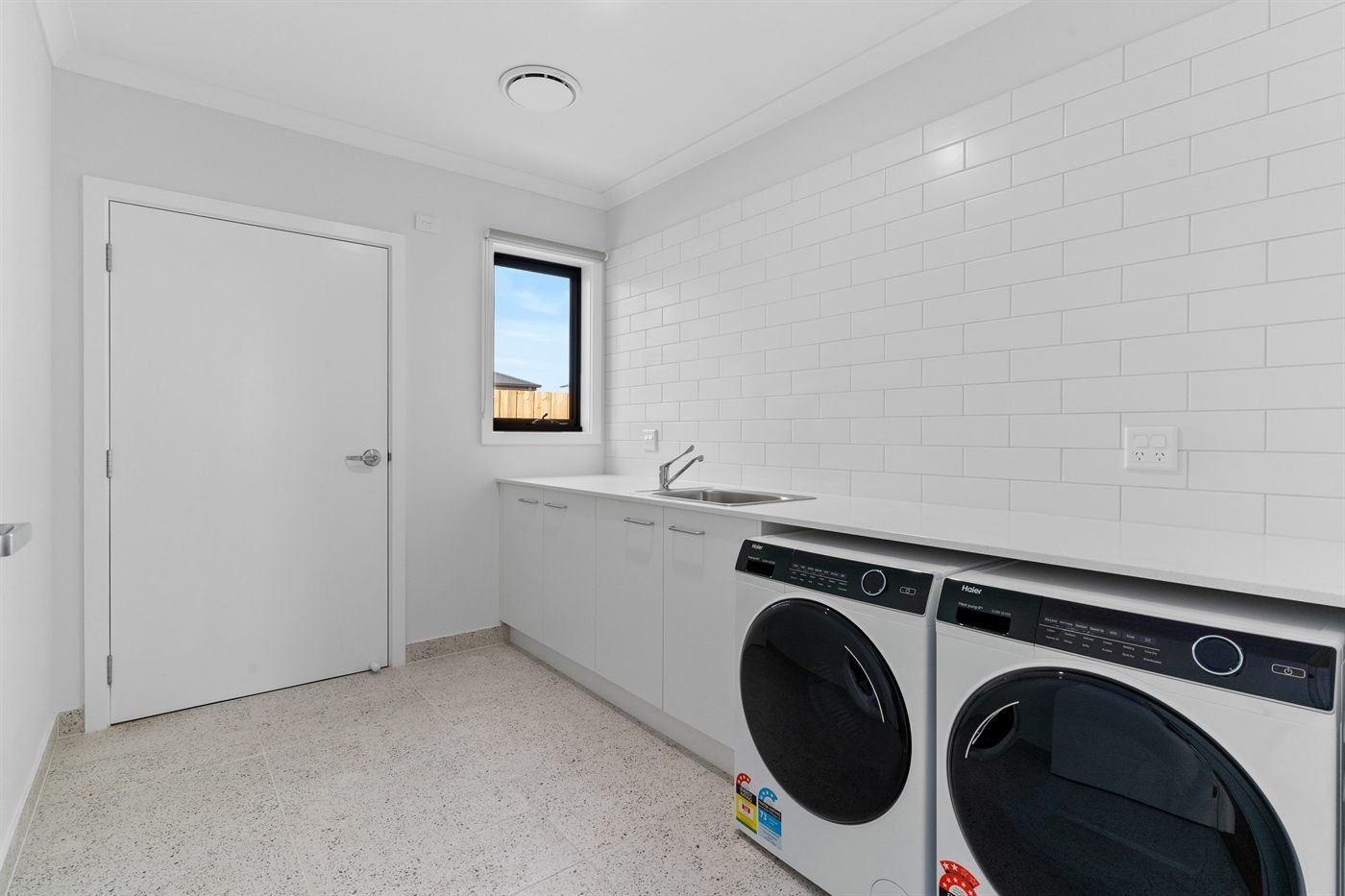

Practical, Accessible and Easy to Use

• The home includes a dedicated laundry area designed to meet the High Physical Support standard.
• Clear space in front of fixtures allows wheelchair users and support workers to move comfortably, and accessible tapware has been installed for ease of use.
• Slip-resistant flooring has also been included in the laundry area to improve safety.

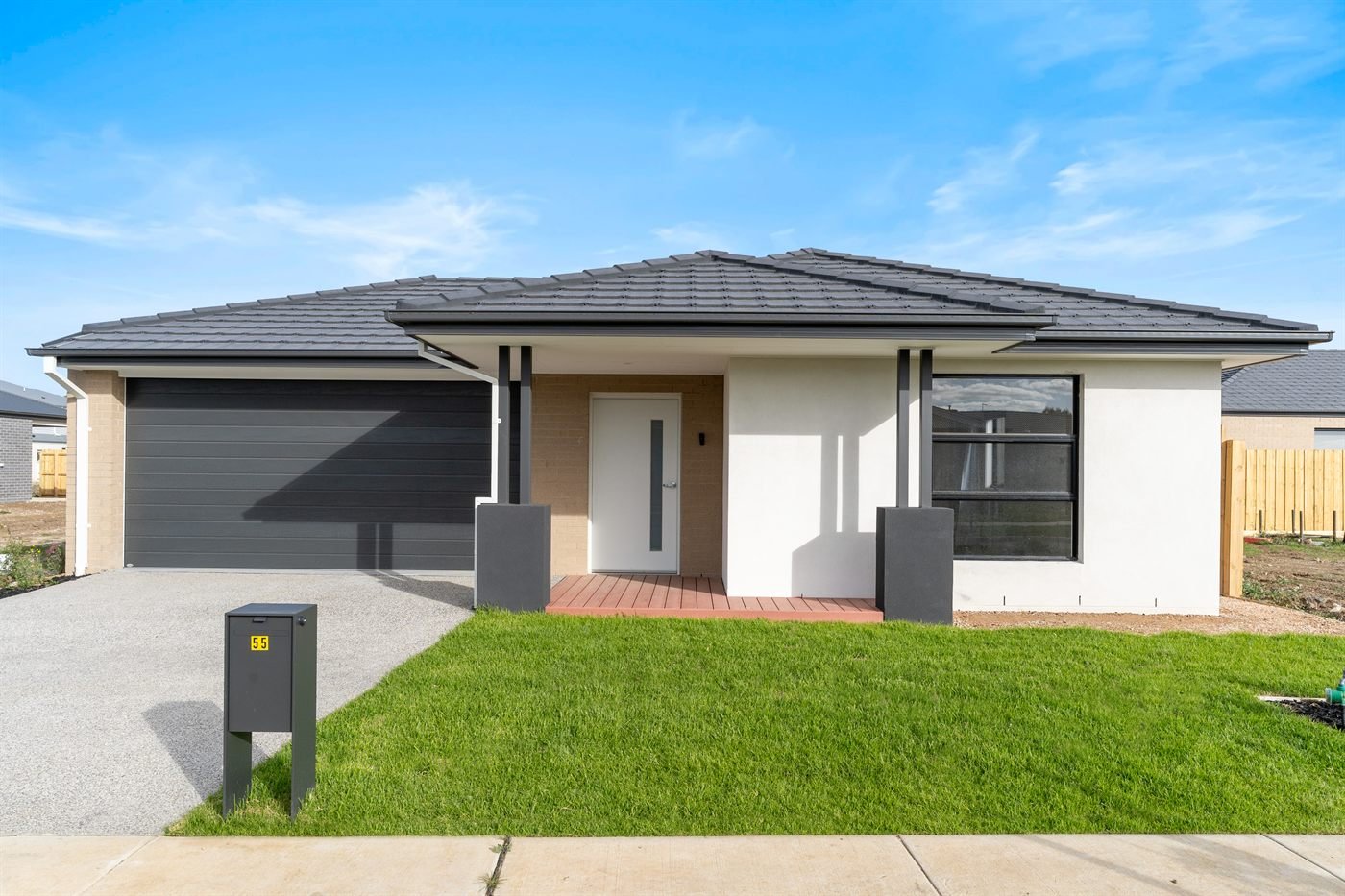

Safe, Smooth and Accessible

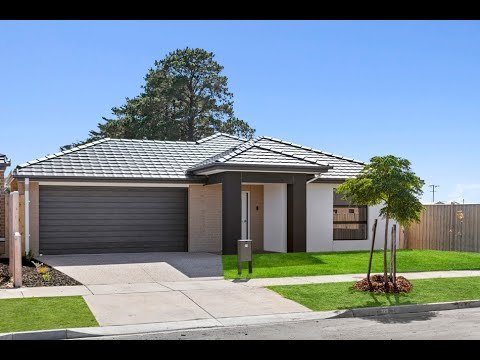

• A continuous step-free pathway has been provided from the front boundary of the property to the entry doorway of the home.

The accessway meets the High Physical Support requirements including

An even and firm surface, compliant gradient, sufficient width for wheelchair access

• The entry area includes a covered landing space, making it safer and more comfortable to enter the home in all weather conditions.

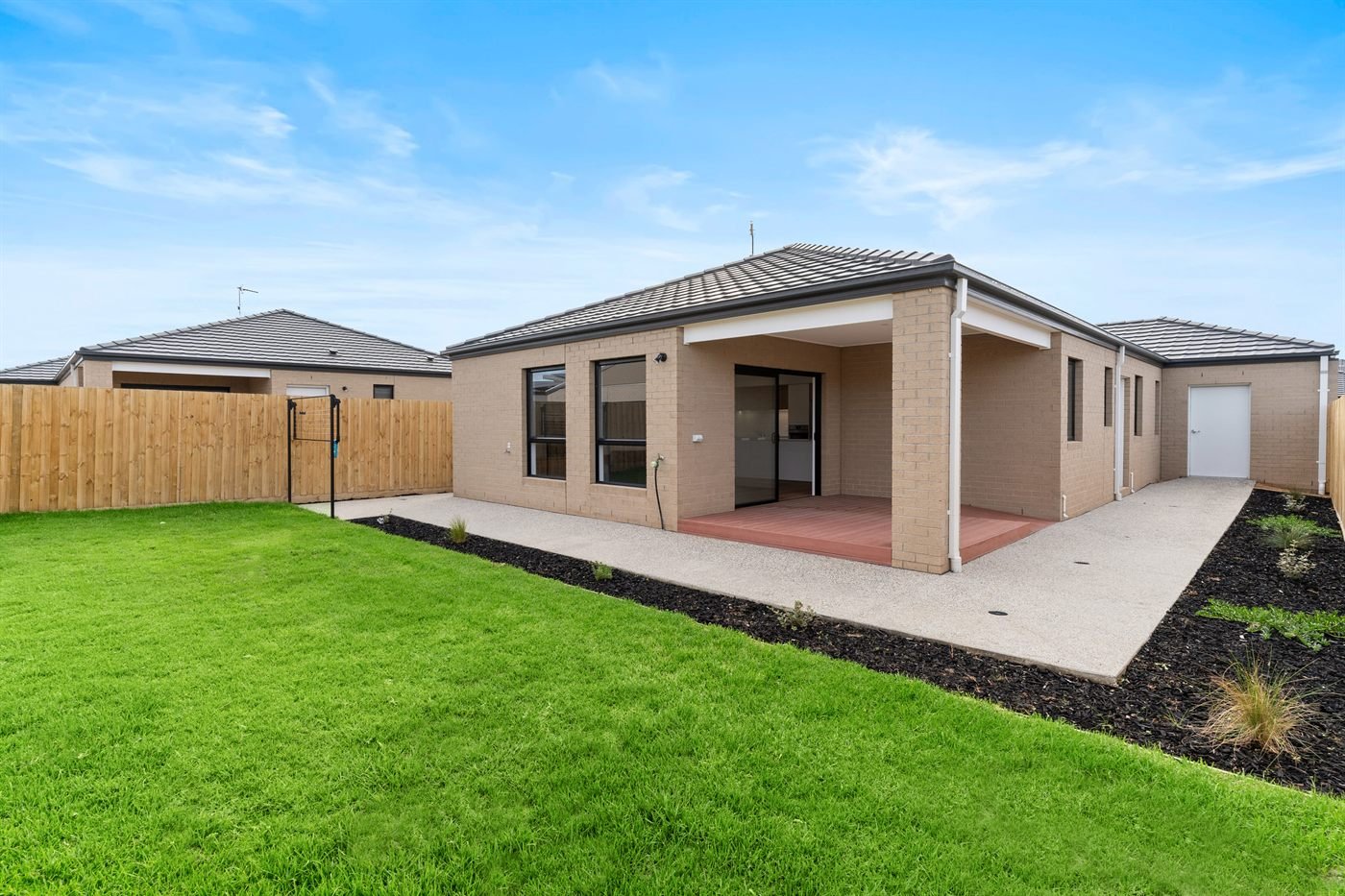

• Step-free access has also been provided to external areas used by participants, ensuring the outdoor space can be used safely and independently.

Built to the Standard and Independently Verified

• High Physical Support is the SDA design category for participants who require the highest level of physical accessibility, including wide circulation areas, accessible bathrooms, provision for ceiling hoists, emergency power, and assistive technology infrastructure.
• The assessment summary and checklist confirm that this home has been built to comply with the High Physical Support design standard at Final-As-Built stage.

Key features confirmed through the documentation include:

• Step-free entry from the front boundary

Practical Layout and Support-Friendly Design

• The layout of the home has been designed to make daily support easier, safer, and more practical.
• Wide corridors, accessible bathroom design, and bedrooms that allow safe circulation mean support workers can deliver care without difficulty.
• Provision for ceiling hoists, reinforced walls in the bathroom, and accessible kitchen design also support participants with higher physical needs.
• These features reduce the need for modifications later and help support providers deliver consistent care in a safe environment.
• The result is a home that works not only for participants but also for the people supporting them every day.

A Home That Supports Real Independence

• 55 Ackland Street has been built with the needs of participants in mind from the beginning.
• From the step-free entry and accessible bathroom layout to the provision for ceiling hoists and the fully compliant High Physical Support design, every part of the home has been created to support independence, safety, and dignity.
• This is a purpose-built High Physical Support SDA home that has been independently assessed and certified at Final-As-Built stage, in a growing community with strong local amenities and healthcare access.
• A home designed to support everyday life, not limit it.
